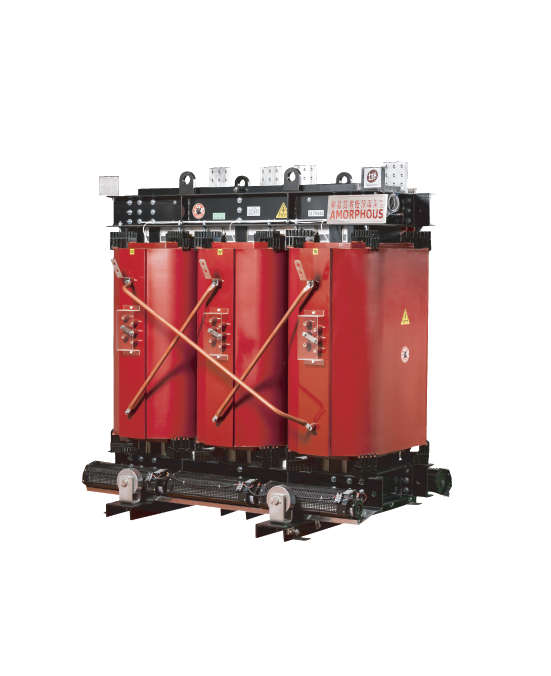

Cast Resin Amorphous core transformer

General technical specifications

Manufacturer: Shihlin Electric

Installation Location: Indoor

High voltage: 22kV/35kV/35(22)kV

Low voltage: 400-231V / 210V

Rated Power: 50kVA to 6300kVA

Number of phase: Three-phase

Frequency: 50Hz

Tapping Range: ±2×2.5%, ±3×2.5%, ±4×2.5% (OLTC)

Connection symbol: Dyn11 / Made to order

Maximum Ambient Temperature: 40°C

Average coil temperature: 100K

Maximum temperature increase: 155°C

Operating Duty: Continuous

Insulation Class: Class F/H

Standard Accessories: Cooling fan; temperature controller

Base on standard: 8525 TCVN; 115EVN; 22EVN/SPC
