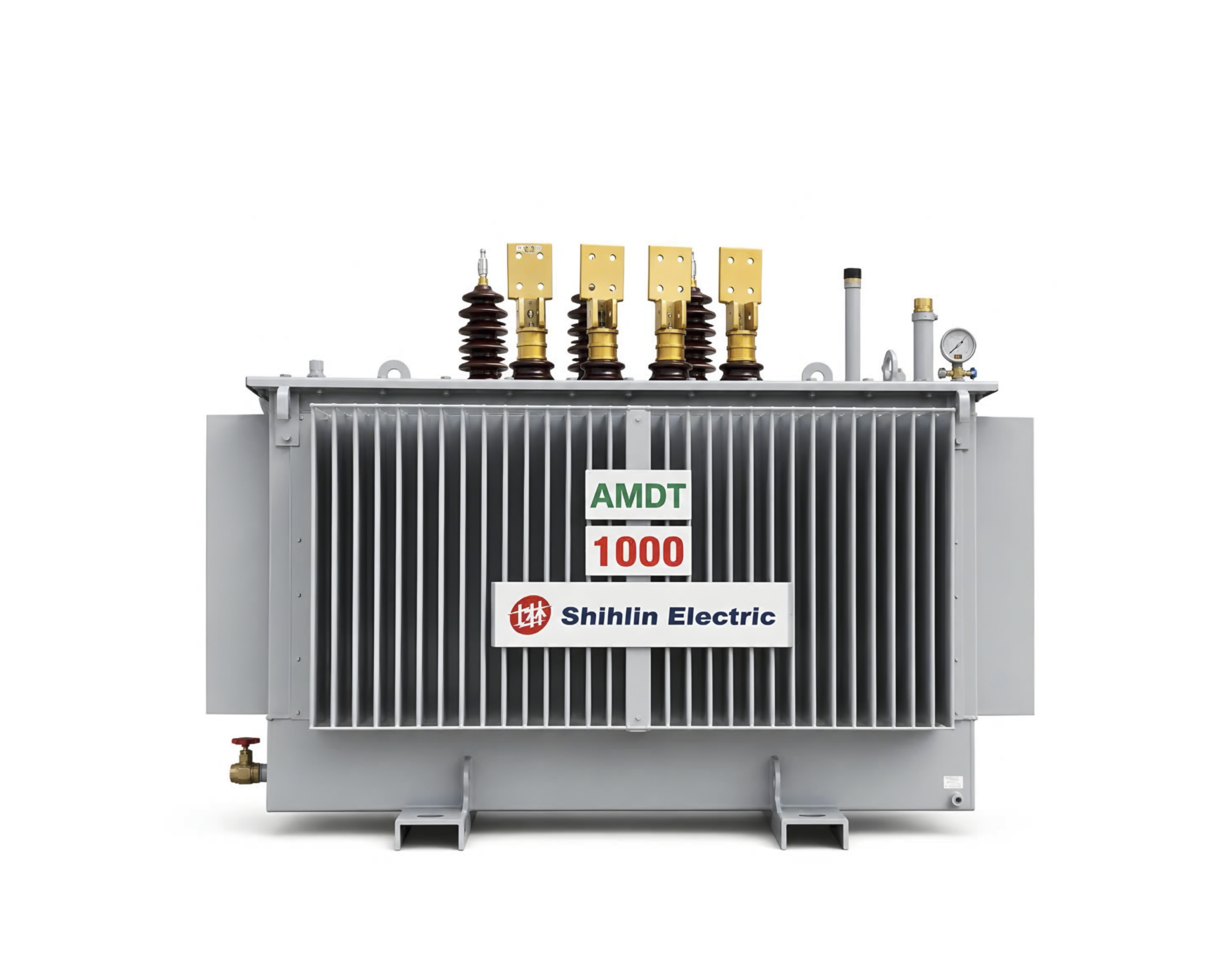

Three-phase Amorphous core transformer

General technical specifications

Manufacturer: Shihlin Electric

Installation Location: Indoor or Outdoor

Cooling Method: ONAN

High voltage: 22kV/35kV/35(22)kV

Low voltage: 400-231V / 210V

Rated Power: 50kVA to 6300kVA

Number of phase: Three-phase

Frequency: 50Hz

Tapping Range: ±2×2.5%, ±3×2.5%, ±4×2.5% (OLTC)

Connection symbol: Dyn11 / Made to order

Maximum Ambient Temperature: 45°C

Top Oil Temperature Rise: 60°C

Winding Temperature Rise: 65°C

Operating Duty: Continuous

Insulation Class: Class A

Painting: RAL 7001 coating or Hot-dip galvanized

Standard Accessories: Pressure relief valve

Base on standard: 96EVN; 22EVN/SPC
